Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line

  • 1
  • 2
  • 3

Brand Name : METALIGN

Model Number : RT

Certification : CE,ISO,etc

Place of Origin : CHINA

MOQ : 1 set

Price : USD1,000-700,000. Based on customization.

Payment Terms : L/C,T/T

Supply Ability : 30 sets per month

Delivery Time : 30 days

Packaging Details : Industrial plastic film wrapping, secured with steel wire.

Product name : Chain Driven Roll Former For Traditional Roof Tile Panel With Hydraulic Cutting And Safety Cover

Key words : metal roof tile roll forming machine/traditional roof tile production line

Profile : Roof Tile

Application : Residential Roofing / Commercial Roofing / Industrial Roofing

Material type : PPGI/PPGL/GI/GL Steel Coils

Material thickness : 0.3-0.8mm

Forming speed : 15-20m/min

Main motor power : 5.5Kw

Forming stations : 18

Driving system : Chain

Frame structure : Wall panel

Shaft diameter : 70mm

Machine condition : Brand new

Shaft material : #45 steel quenched 55-60℃

Roller material : High grade #45 steel, surface with hard chrome

Display language : English/Spanish/Russian/French,etc, customizable

Control technique : PLC+Touch Screen

Delivery time : 30 days

Contact Now

New Design Double Layer Steel Corrugated Roof Sheet Making Roll Forming Machine
1. Overview
1.1 Production Line

Engineered for manufacturers producing standard metal roofing sheets, this roll forming system serves a wide range of customers in international markets. It provides a stable and productive solution, integrating hydraulic punching and cutting units to achieve accurate dimensions and smooth edge quality throughout the production process.

Designed to support medium and high output demands, the line helps improve overall panel consistency while reducing manual intervention and operational risks on the shop floor. Its user-friendly adjustment capabilities enable quick adaptation to various profile designs, material specifications, and operating speeds.

With its combination of efficiency, precision, and flexibility, the machine is well suited for producers handling diverse roofing projects, ensuring dependable performance and the ability to meet different market requirements.

Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line
1.2 Profile

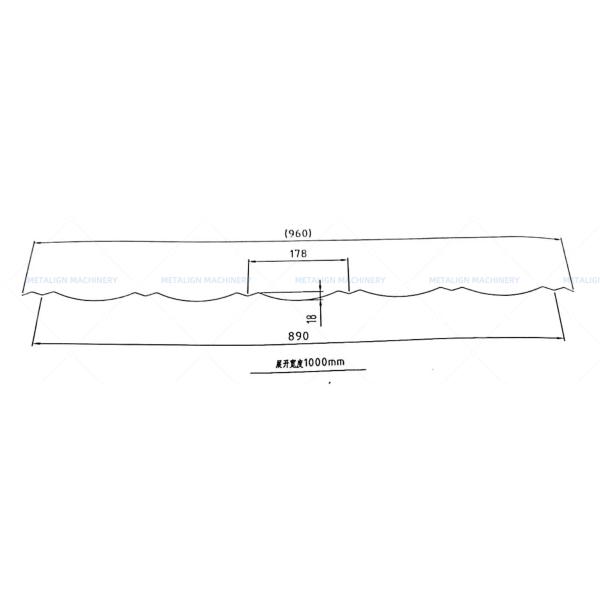

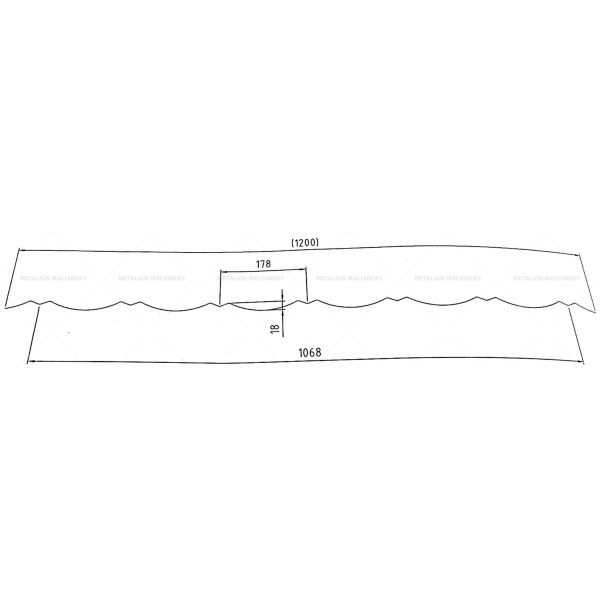

The traditional metal roof tile profile is made from galvanized or color-coated steel coils, 0.3 to 0.8mm thick. Its shape mimics classic roof tiles with embossed texture and perforations for drainage. Durable and lightweight, it is ideal for residential and commercial roofing applications requiring aesthetic appeal and weather resistance.

  • Material: Galvanized Steel / PPGI / Aluminum
  • Thickness: 0.3-0.8mm
  • Yield strength: 200 - 350 Mpa
  • Tensile stress: 200 -350 Mpa
Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line
1.3 Production Process

Flow Chart: Hydraulic Decoiler → Entry Guide → Roll Former → Hydraulic Punch → Hydraulic Cutter → Auto Stacker

Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line

Steel coils are decoiled and guided precisely into a chain-driven roll former with safety cover, shaping the metal into traditional roof tile profiles. Hydraulic punching creates drainage and decorative holes, followed by hydraulic cutting to precise lengths, ensuring quality and efficiency.

1.4 Key Focus
  • Robust chain-driven roll former with protective chain cover for enhanced safety
  • Precise hydraulic punching for functional perforations
  • Accurate hydraulic cutting for clean edges
  • Efficient 7T decoiler and automated stacking system
  • Boosted productivity while maintaining high product quality and operator safety
2. Technical Parameters
2.1 Decoiler
Structure Double-support Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line
Working Form Manual, motorized, or hydraulic
Loading Capacity 5T/7T/10T, customizable
Coil Width 1250mm, customizable
Inner Diameter Φ450 - Φ550 mm
Out Diameter 1500 mm
Model DC-MU1
2.2 Optional Upgrade: Decoiler
Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line
2.3 Guiding Device With Pre-Cut Broaching Shear
Guiding Roller Adjust the coil feeding width Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line
Pre-cut Broaching Shear Cut the steel coil before roll forming
Digital Display See the feeding width directly
2.4 Roll Forming Machine
Working Speed Around 20 m/min Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line
Structure Wall panel type. Optional: Cast-iron stands or guide pillar
Driving System Chain system. Optional: Gearbox
No. of Forming Stations 18 stands
Shaft Diameter 70mm solid shaft
Motor Power 5.5 Kw
Roller Material 45# steel polished and chromed HRC58-62°
Shaft Material High grade 45# steel polished(CNC lathe)
Steel Coil Material PPGI or GI
Steel Coil Thickness 0.25-0.8mm
Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line
2.5 Optional Upgrade: Cover
Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line
2.6 Cutter
Common Power Type Hydraulic. Optional: motor type. Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line
Hydraulic Power 4-5.5Kw, customizable
Blade Material Cr12 Mov
Hardness With quenched treatment HRC 58 - 62°
2.7 Product Collection
Solution 1 Run-out table Solution 2 Auto stacker
Power Type Non-powered, mainly manual handling Power Type Motorized, 3Kw
Dimension Length 4m, customizable Dimension Length 4m-6m, customizable
Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line
2.8 PLC Control Cabinet
PLC Brand Delta, customizable Power Supply 380v, 50HZ, 3Phase (It depends on customer requirement)
Encoder Brand Omron, customizable Language Chinese + English, Spanish, French, Russian, etc
Touch Screen MCGS, customizable Operation type Manual /auto two-type switch
Hanging Arm Type Saving Space Standing Type Greater component integration and flexible positioning
Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line
2.9 Hydraulic Power Unit (HPU)
Motor Power 5.5Kw Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line
Oil Required N32 or N46 hydraulic oil is available
Design The hydraulic station has a fan cooling system
Optional It can be installed on or inside the roll former to save space
2.10 Analysis
Component Features

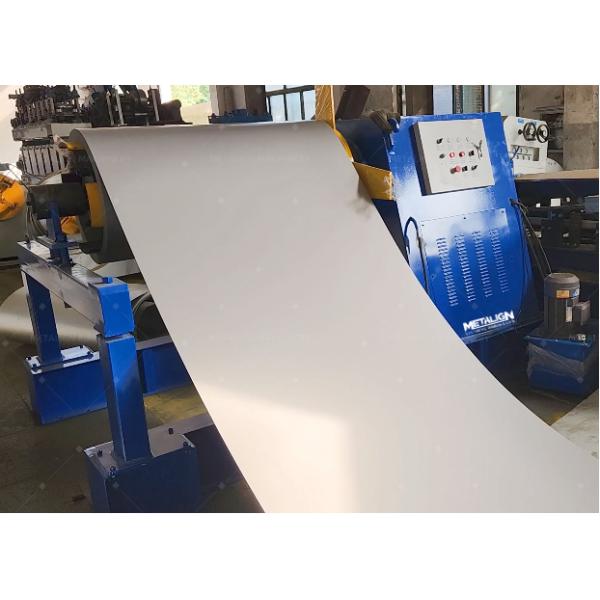

Hydraulic Decoiler
  • Supports medium thickness steel coils up to 7 tons
  • Hydraulic tension control ensures smooth material feeding
Guiding Device
  • Precisely aligns steel strip for accurate forming
  • Adjustable to accommodate different coil widths
Roll Former
  • Chain-driven for durable, stable forming
  • Chain cover protects operators and prolongs chain life

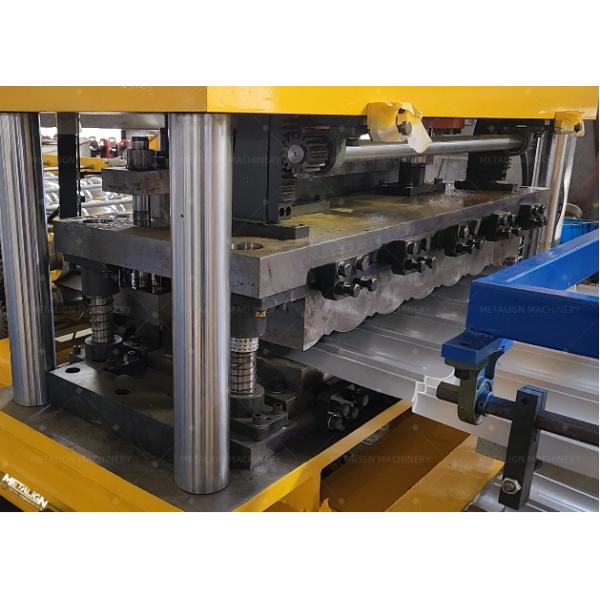

Hydraulic Punching
  • Custom molds for precise perforations
  • Hydraulic pressure offers consistent punching quality
Hydraulic Cutter
  • Provides clean, accurate cuts to length
  • Hydraulic system reduces noise and vibration
Run-out Table
  • Facilitates smooth product exit and temporary storage
  • Designed for integration with auto stacking systems
3. Production Line Components
Component Quantity
Hydraulic Decoiler 1 set
Roll Former 1 set
Hydraulic Cutter 1 set
Out Table 2 sets
PLC Cabinet 1 set
Hydraulic Station 1 set
4. Customization Options

We offer tailored configurations for this traditional roof tile profile line, including:

  • Adjustable hydraulic punch molds for varied hole patterns
  • Customizable roll former tooling for different tile shapes
  • Flexible stacking solutions to match production speed and space requirements
  • Optimal performance configurations for your specific roofing product needs

Chain Driven Roll Forming Machine with 18 Forming Stations and Hydraulic Cutting for Metal Roof Tile Production Line
